Description

CLICK HERE FOR COMPATIBLE SLIP LINER

CLICK HERE FOR PACKAGE DEAL

DESIGNED FOR THE STOCK KTM PIPE!

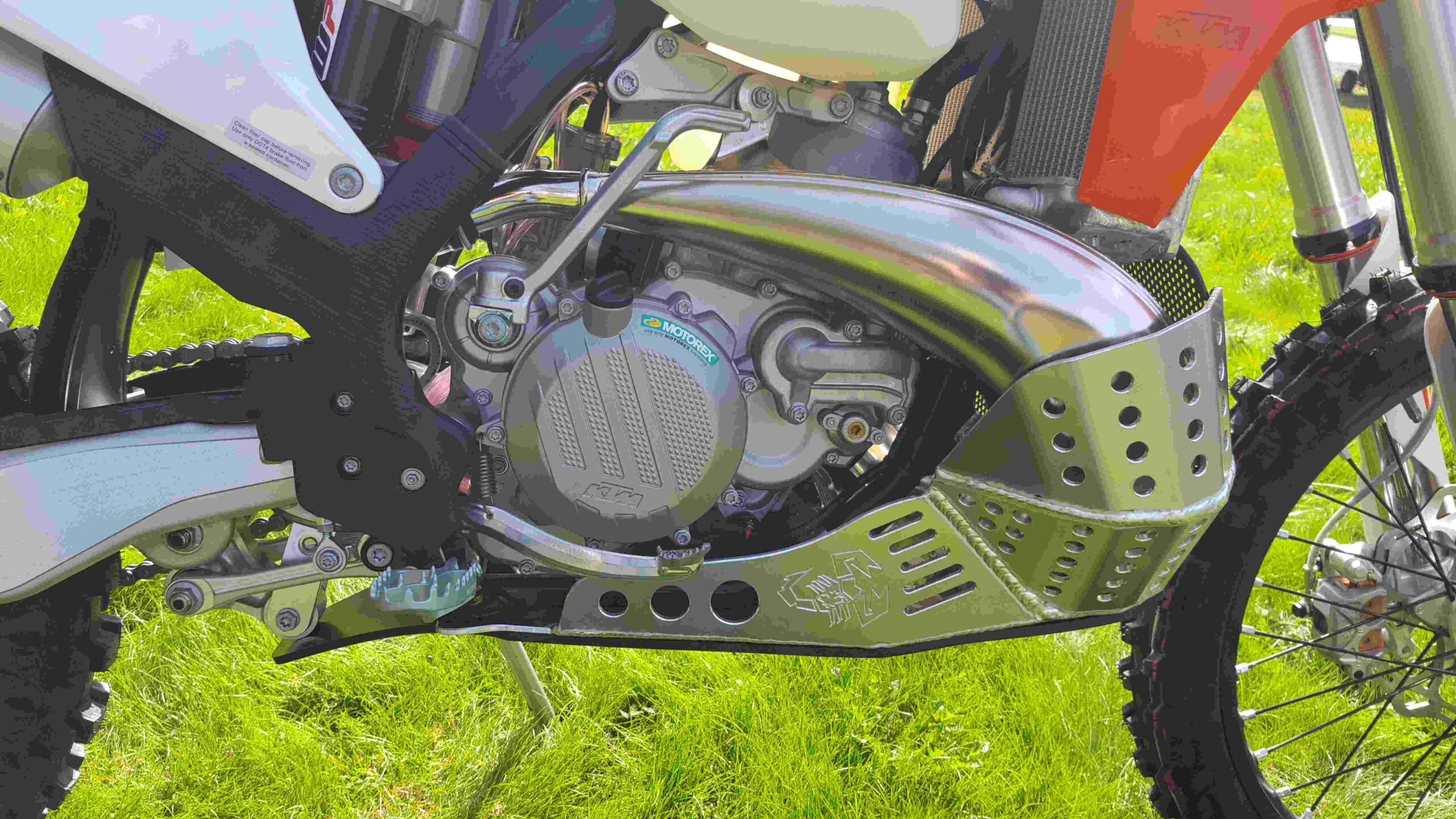

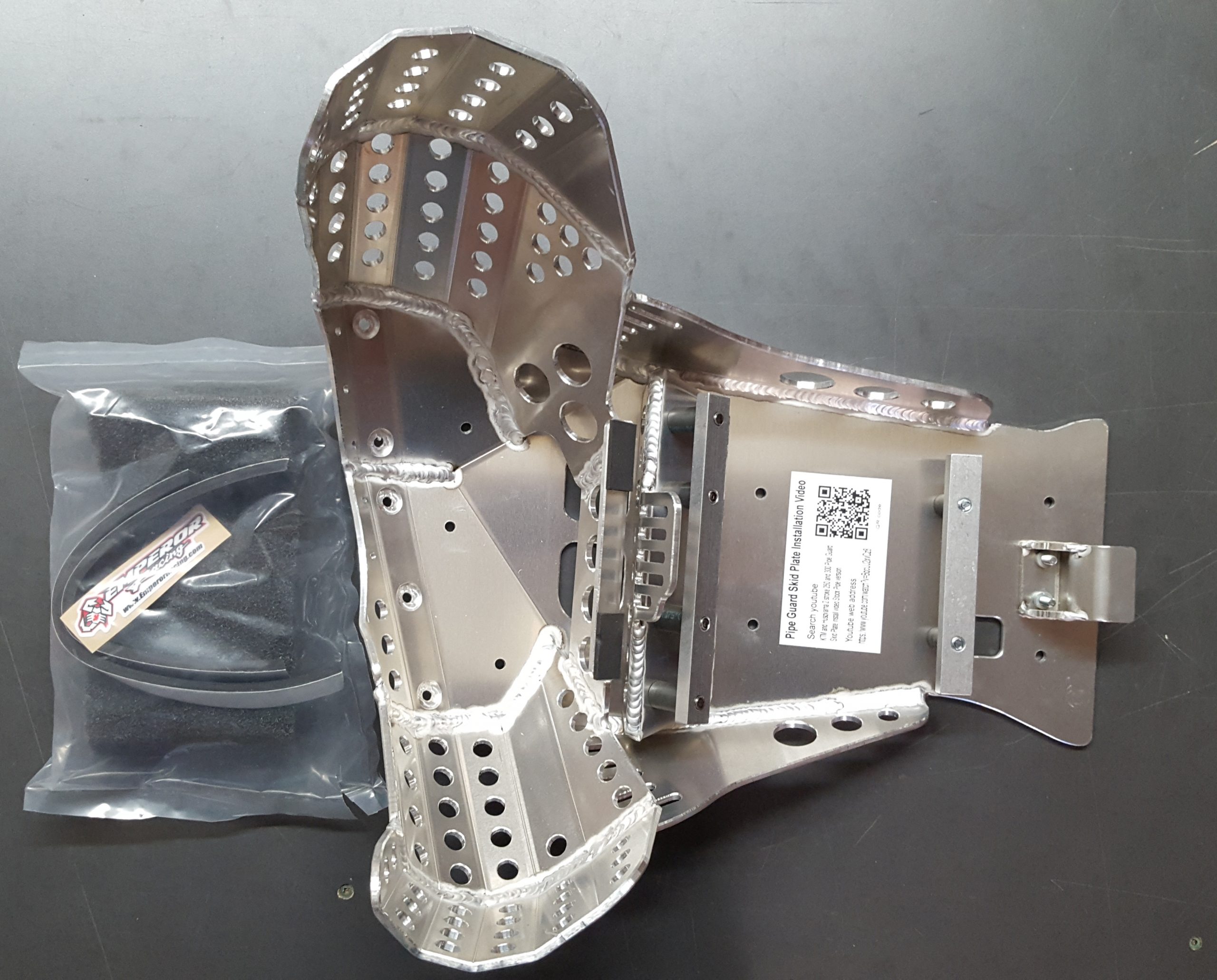

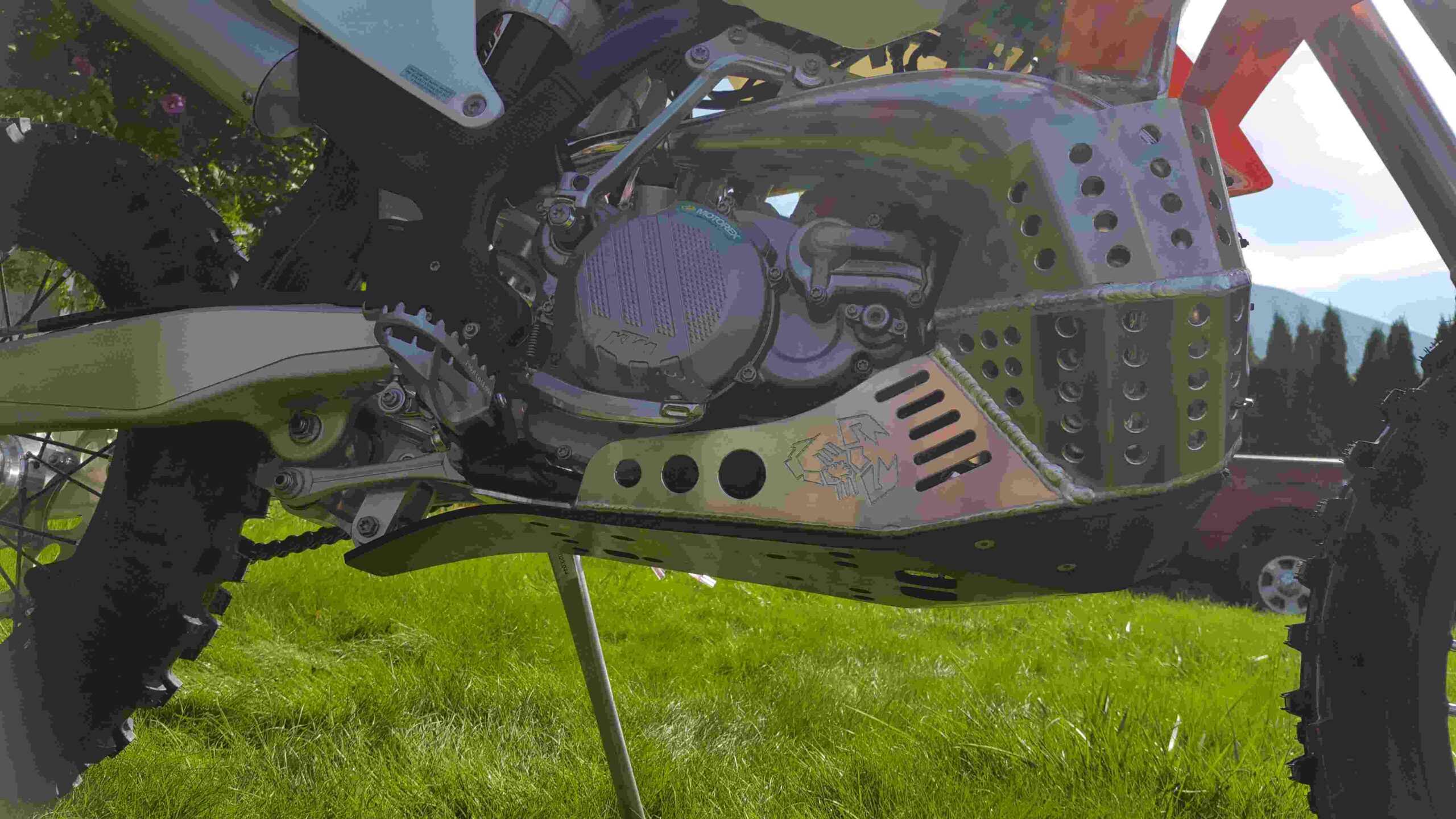

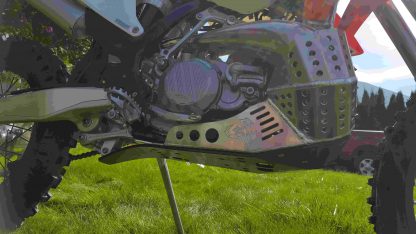

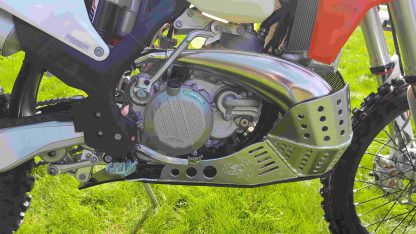

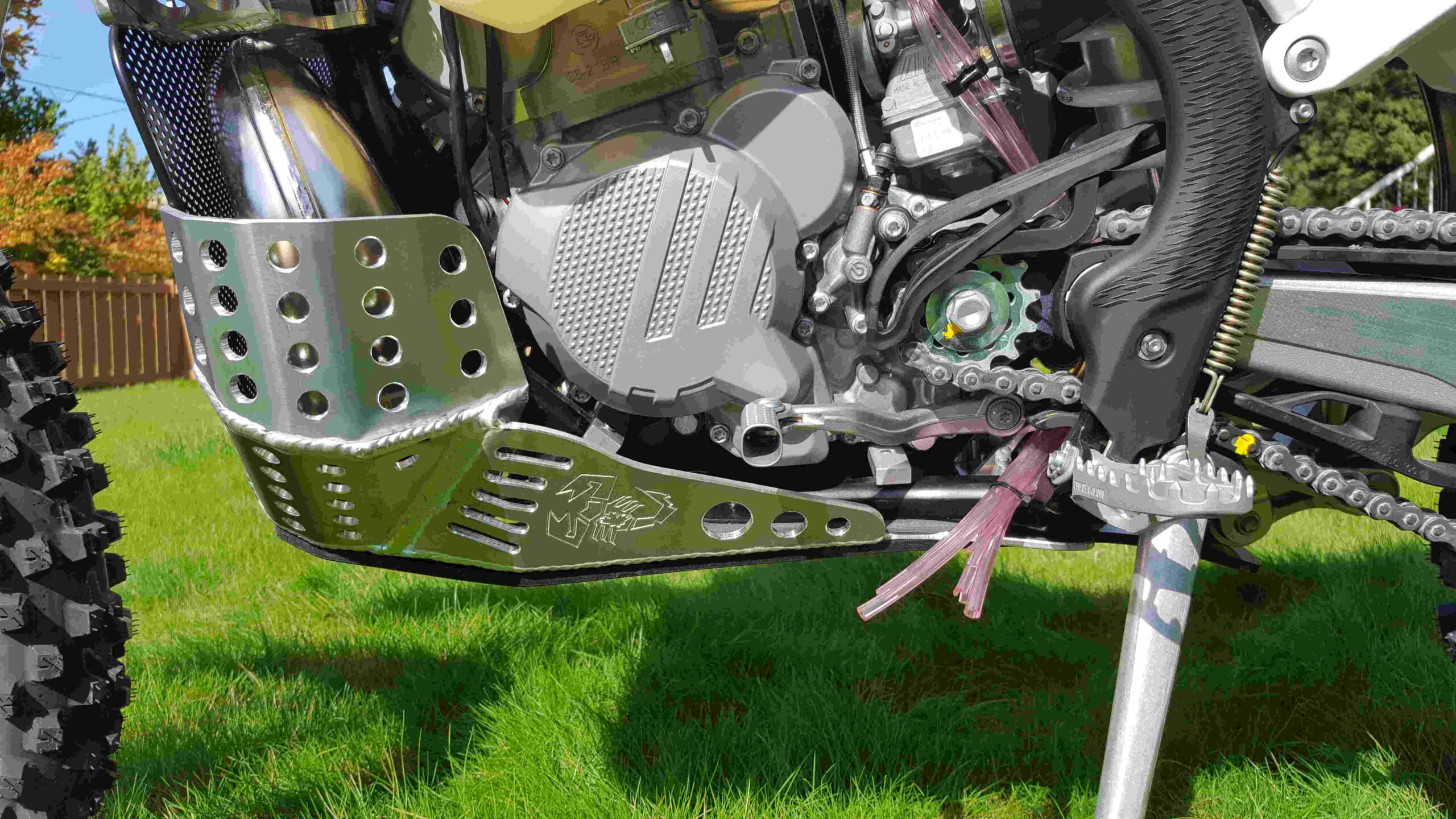

The Emperor Heavy Duty Pipe Guard Skid Plate KTM-2360 is the best skid plate available on the market today.  With a 3/16” thick aluminum construction, hand Tig welded wings (full length both sides) with a Emperor logo carved into each side for the bling factor, aluminum mounting brackets and high-grade metric fasteners, you simply can’t go wrong.  But now we have made it even better by offering a pipe guard version for all the 2 stroke fans out there.  It still has all the standard extras like 1/4″ thick x 3/4″ wide foam tape to place between the frame and skid plate for a nice snug fit that will eliminate any possible vibrations, a block of open cell foam is also supplied to place between the skid plate and the engine to reduce the build up of material between the skid plate and engine case.  This is the perfect product for the hard core 2 stroke loving off-road rider.

Product Features:

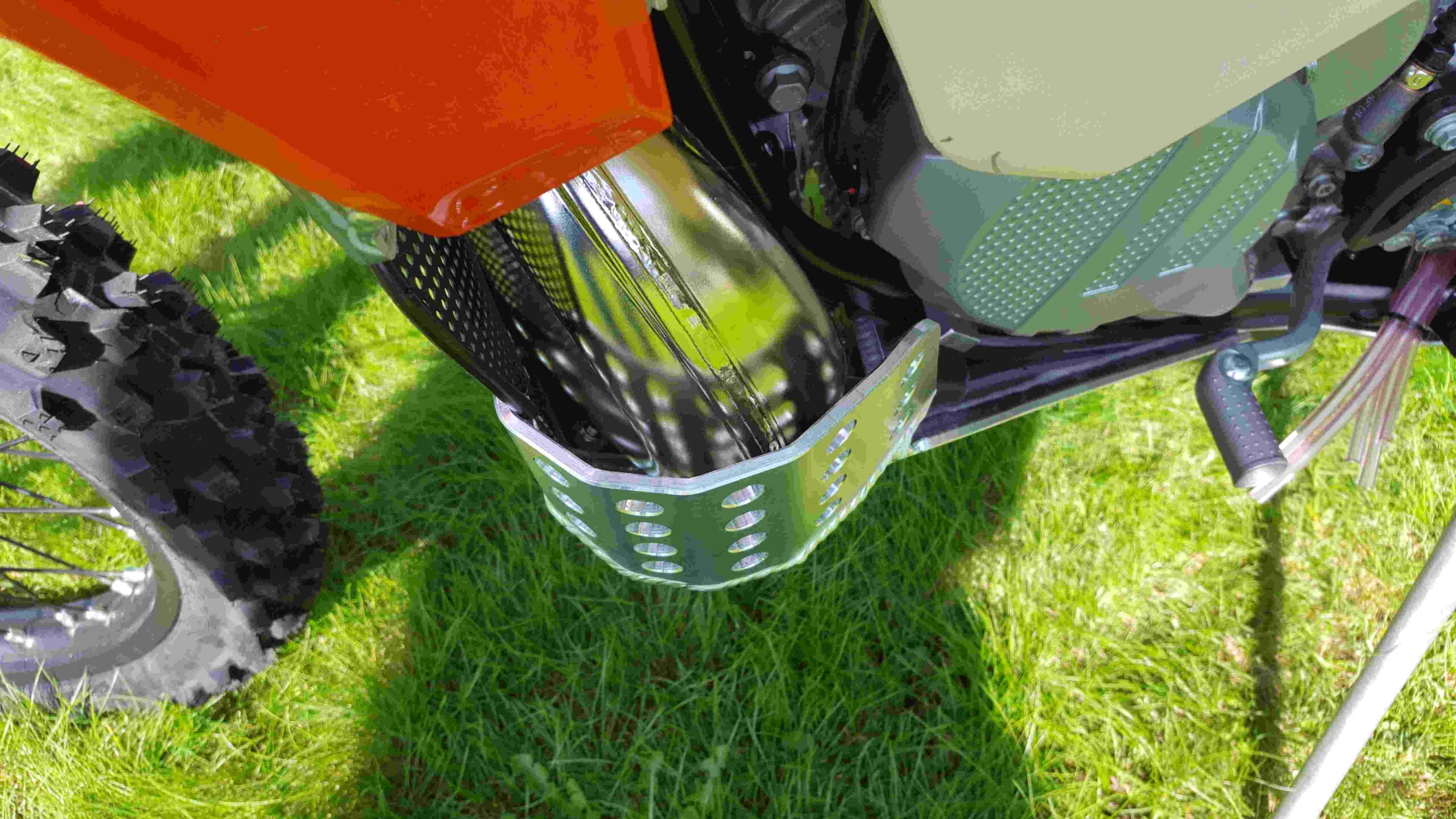

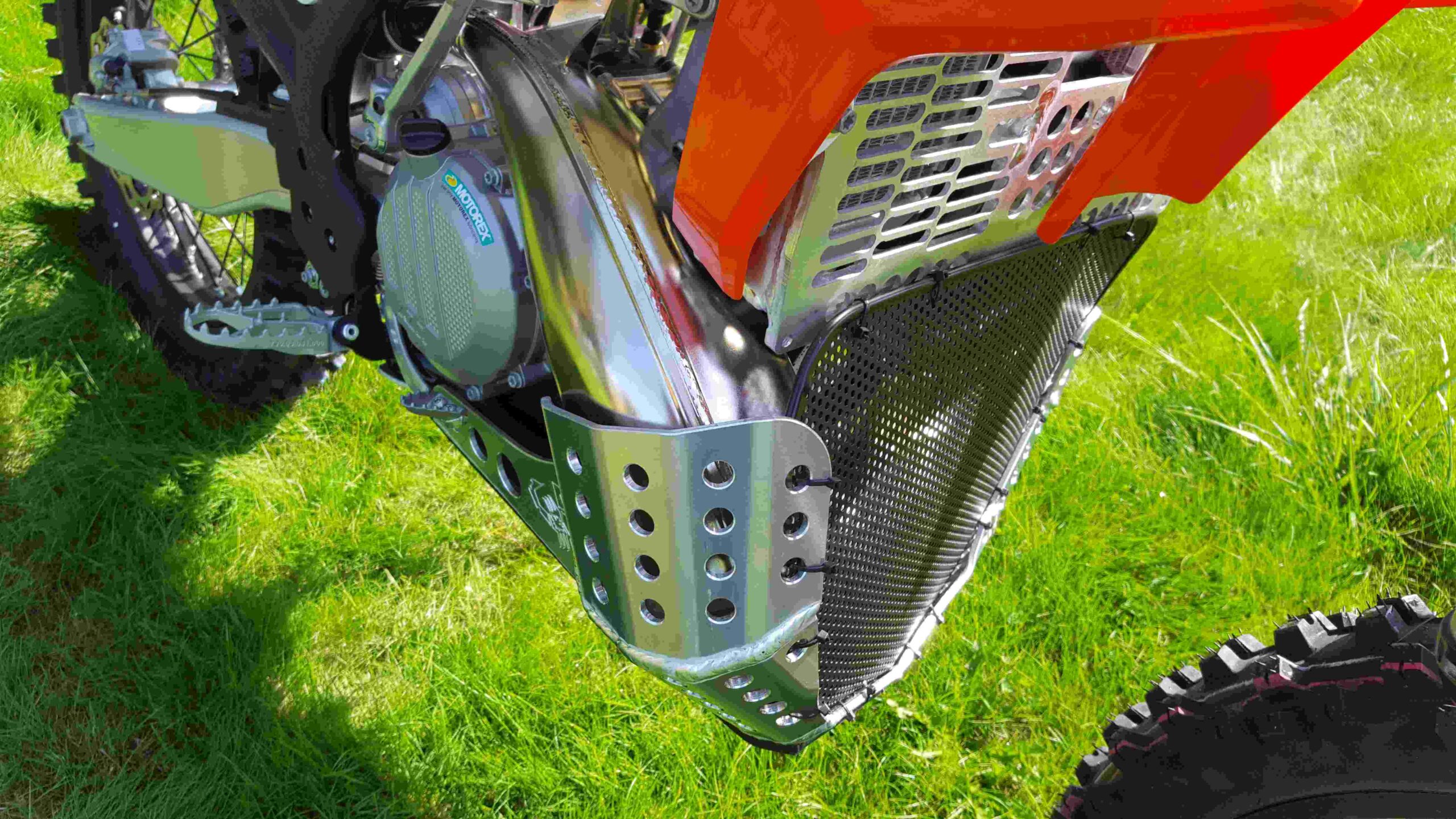

• MANUFACTURED OUT OF HIGH GRADE 3/16″ ALUMINUM MAKES THE EMPEROR HEAVY DUTY SKID PLATE ARGUABLY THE STRONGEST SKID PLATE AVAILABLE NOW WITH AN EXTENDED FRONT THAT PROTECTS THE 2 STROKE EXHAUST PIPE
• DESIGNED FOR THE STOCK KTM PIPE
• EXHAUST GUARD DOES NOT TOUCH THE PIPE IN ANY WAY SO ALL IMPACT STRESSES ARE TRANSFERRED BACK TO THE FRAME NOT THE ENGINE CASE / HEAD TUBE
• EXTRA MIDDLE MOUNTING BRACKET TO HELP SUPPORT THE EXHAUST GUARD
• BOTH SIDE AND BOTTOM PROTECTION AGAINST IMPACT
• 4 BOLT FRONT MOUNTING STOPS MOUNTING BRACKETS FROM BENDING WHEN SKID PLATE TAKES A HARD IMPACT
• NO NEED TO REMOVE SKID PLATE TO CHANGE OIL
• SNUG FIT SPACERS MAKE THIS SKID PLATE QUICK AND EASY TO INSTALL (BOLTS DON’T FALL OUT DURING INSTALL)
• FRONT MOUNTING BRACKET HAS SMALL VENTED MUD GUARD THAT STICKS UP BETWEEN THE FRAME RAILS (HELPS TO KEEP THE MUD OUT)
• FOAM TAPE TO PUT BETWEEN THE FRAME AND SKID PLATE FOR A NICE SNUG VIBRATION-FREE FIT
• OPEN CELL FOAM TO PUT BETWEEN THE SKID PLATE AND ENGINE CASE TO REDUCE MUD BUILD UP KEEPING YOUR BIKE LIGHT!
• EMPEROR SCORPION ENGRAVED IN EACH WING FOR SOME BLING FACTOR
• WEIGHT: 8LBS/3.62KGS WITHOUT SLIP LINER 9LBS/4.08KGS WITH SLIP LINER
• PROUDLY MADE IN CANADA

Most asked questions:

Will an aftermarket pipe fit like FMF fatty or Gnarly or Pro-circuit?   NO

Product add-ons:

• EMPEROR RACING PLASTIC SLIP LINER / LINKAGE GUARD: PART NUMBER KTM-2321

• Front Mud Guard KTM-2364 (best fit with Billet Radiator guard KTM-2365)

Note: This guard is designed to be used with the stock exhaust system.  No aftermarket exhaust fits as far as we know.  We believe that if you were able to install another pipe in this guard you would likely not be happy with the fit.

If you managed to get one to fit we would love to see pictures and a comment how satisfied you are so we can share here on our web site.

Replacment parts:

• Complete hardware kit, bolt kit and spacer kit for KTM-2360
• Rear Bracket for Pipe Guard Skid Plate KTM-2360
• Middle Cross Bar for Pipe Guard Skid Plate KTM-2360
• Front Cross Bar for Pipe Guard Skid Plate KTM-2360
• Front Bracket for Pipe Guard Skid Plate KTM-2360
