Description

CLICK HERE FOR COMPATIBLE SLIP LINER

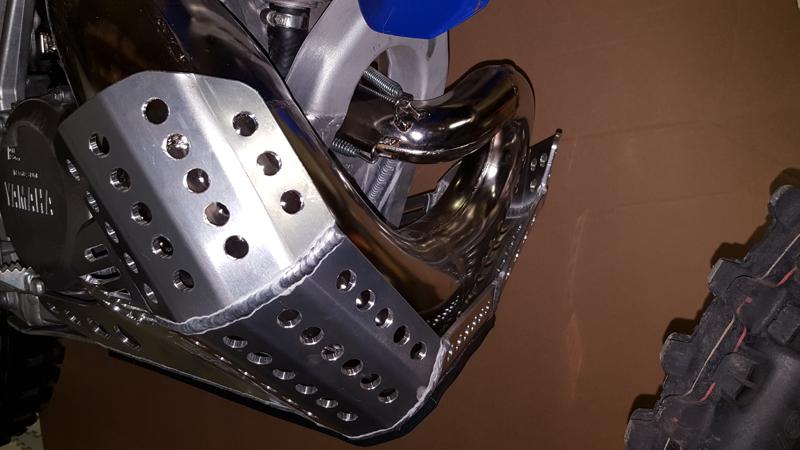

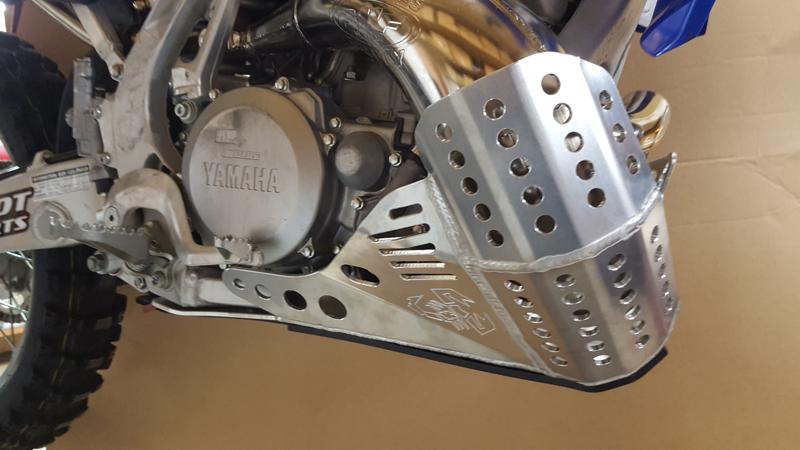

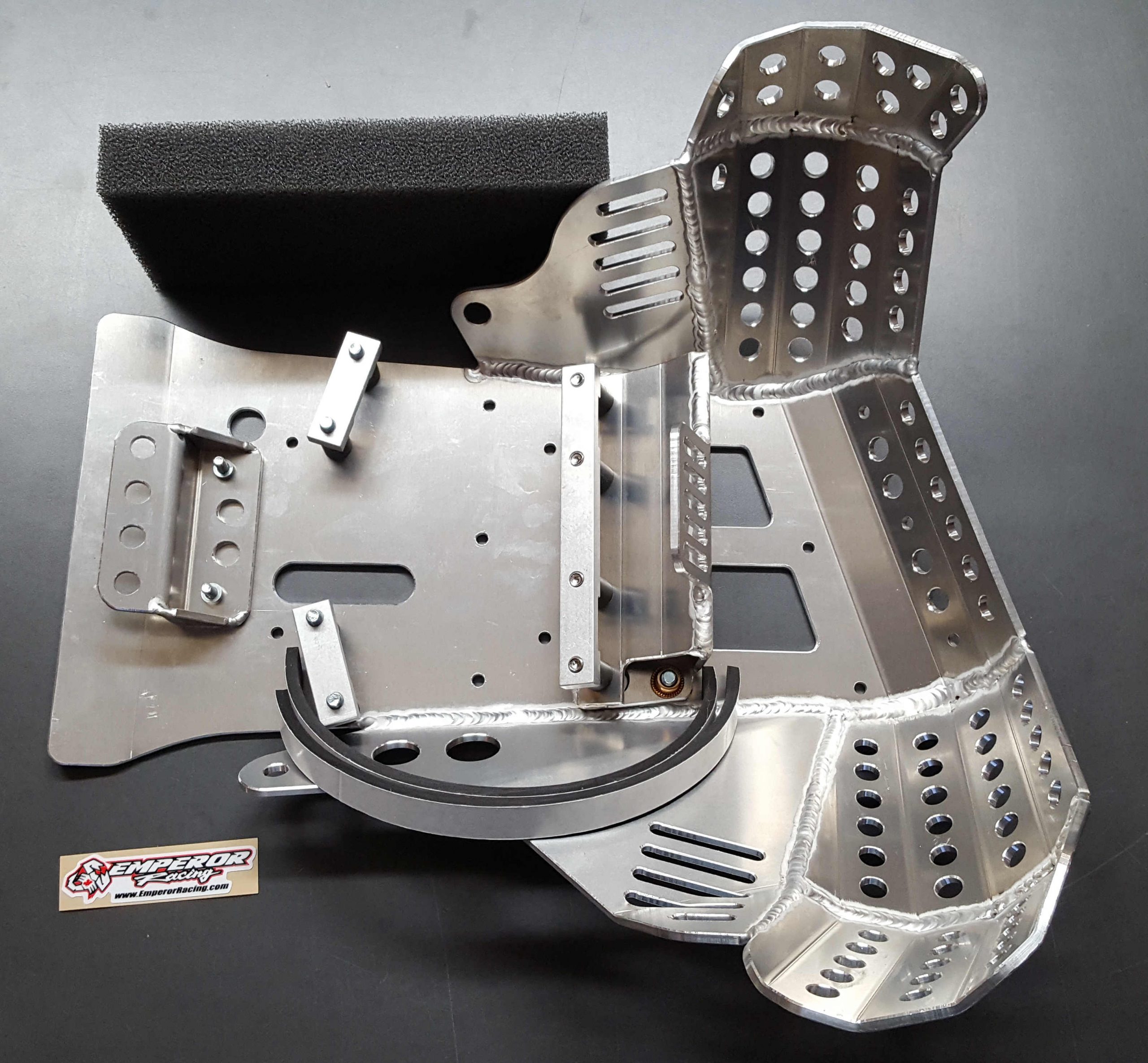

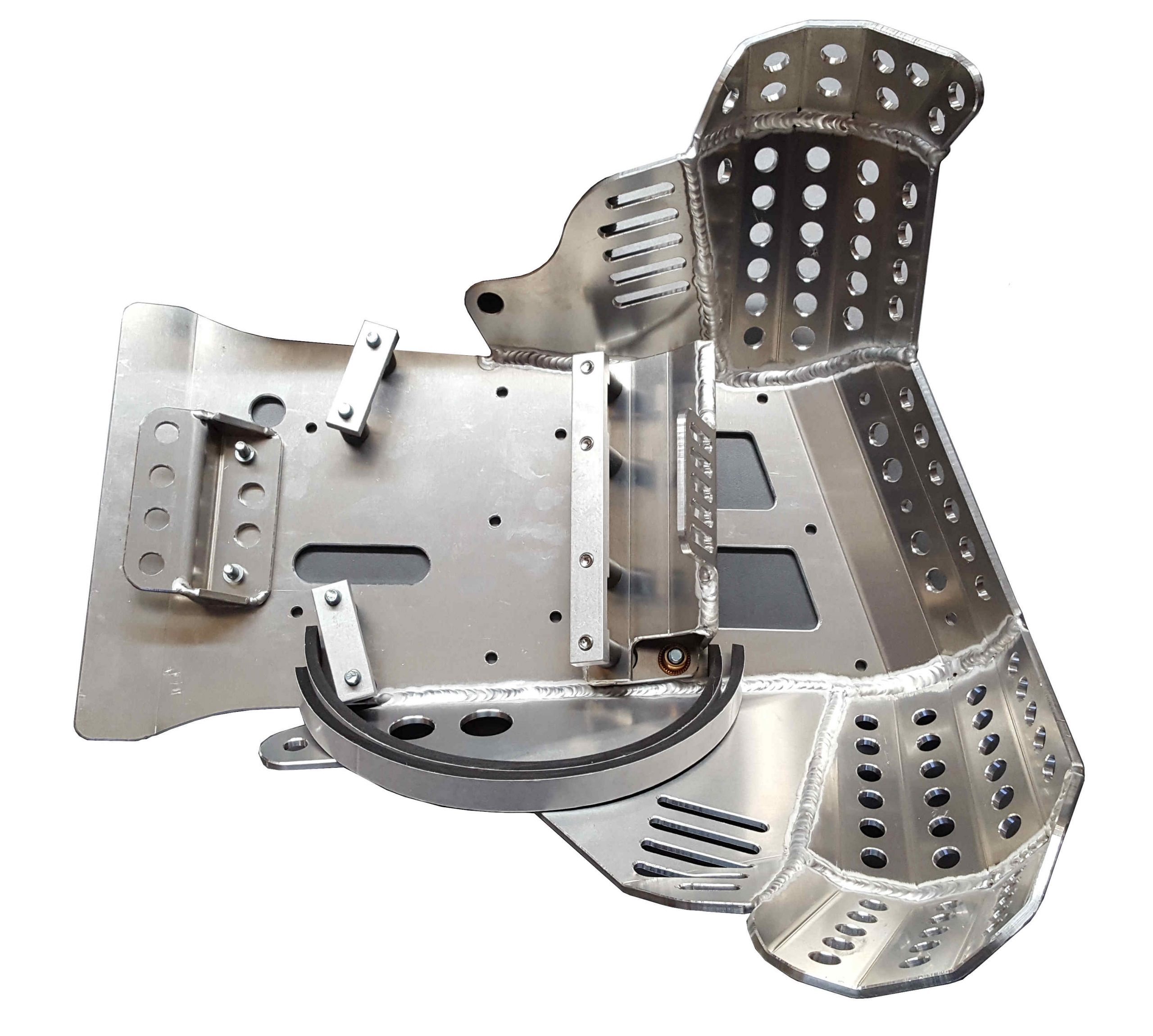

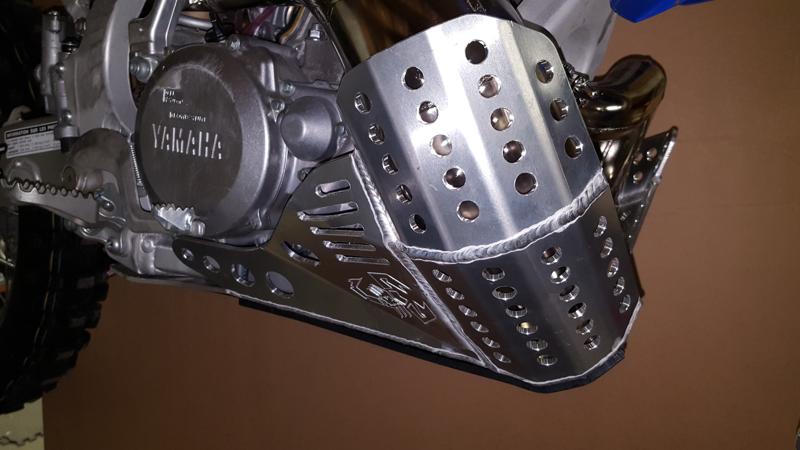

The Emperor Pipe Guard Skid Plate is the best skid plate available on the market today. With a 3/16” thick aluminum construction, hand Tig welded wings (full length both sides) with an Emperor logo carved into each side for the bling factor, aluminum mounting brackets and high-grade metric fasteners, you simply can’t go wrong. But now we have made it even better by offering a pipe guard version for all the 2 stroke fans out there. It still has all the standard extras like 1/4″ thick x 3/4″ wide foam tape to place between the frame and skid plate for a nice snug fit that will eliminate any possible vibrations, a block of open cell foam is also supplied to place between the skid plate and the engine to reduce the build up of material between the skid plate and engine case. Also has pre-drilled holes for Plastic Slip Liner (YZ 2251)  This is the perfect product for the hard core 2 stroke loving off-road rider.

Product Features:
> MANUFACTURED OUT OF HIGH GRADE 3/16″ ALUMINUM MAKES THE EMPEROR HEAVY DUTY SKID PLATE ARGUABLY THE STRONGEST SKID PLATE AVAILABLE NOW WITH AN EXTENDED FRONT THAT PROTECTS THE 2 STROKE EXHAUST PIPE

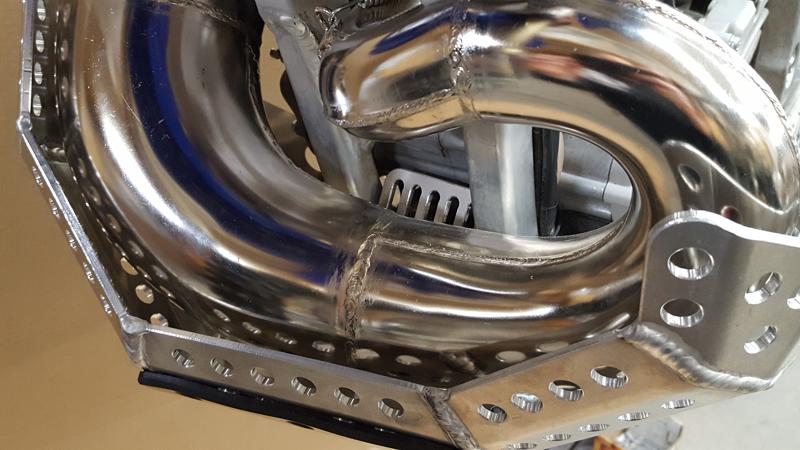

> EXHAUST GUARD DOES NOT TOUCH THE PIPE IN ANY WAY SO ALL IMPACT STRESSES ARE TRANSFERRED BACK TO THE FRAME NOT THE ENGINE CASE
> EXTRA MIDDLE MOUNTING BRACKET TO HELP SUPPORT THE EXHAUST GUARD
> BOTH SIDE AND BOTTOM PROTECTION AGAINST IMPACT
> 4 BOLT FRONT MOUNTING STOPS MOUNTING BRACKETS FROM BENDING WHEN SKID PLATE TAKES A HARD IMPACT (MOST MODELS)
> NO NEED TO REMOVE SKID PLATE TO CHANGE OIL
> SNUG FIT SPACERS MAKE THIS SKID PLATE QUICK AND EASY TO INSTALL
> FRONT MOUNTING BRACKET HAS SMALL VENTED MUD GUARD THAT STICKS UP BETWEEN THE FRAME RAILS (HELPS TO KEEP THE MUD OUT)
> FOAM TAPE TO PUT BETWEEN THE FRAME AND SKID PLATE
> OPEN CELL FOAM TO PUT BETWEEN THE SKID PLATE
> EMPEROR SCORPION ENGRAVED IN EACH WING FOR SOME BLING FACTOR
> PRE-DRILLED HOLES FOR PLASTIC SLIP LINER (YZ-2251) SOLD SEPARATELY
> WEIGHS 6LBS/2.7KGS WITHOUT SLIP LINER OR 7LBS/3.2KGS WITH SLIP LINER
> PROUDLY MADE IN CANADA

This product designed to be used with FMF Gnarly pipe NOT your stock pipe

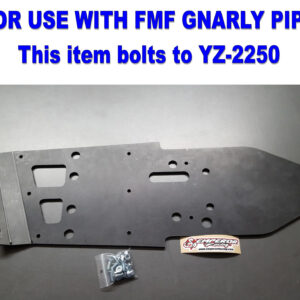

Plastic Slip Liner WITH beaver tail link guard YZ-2251

• Front Bracket for Gnarly Pipe Guard Skid Plate YZ-2250
• Middle Bracket for Gnarly Pipe Guard Skid Plate YZ-2250
• Rear Bracket for Gnarly Pipe Guard Skid Plate YZ-2250
• Front Cross Bar for Gnarly Pipe Guard Skid Plate YZ-2250
• Hardware Kit for Gnarly Pipe Guard Skid Plate YZ-2250
