Description

Sold out – discontinued Jan-10-2023    due to the fit issue below we will not be making more.   No plans to make one to fit FMF’s new pipe design for these year bikes.

Fit issue notice: 12-6-2021

Sadly we have fond out that FMF has changed the shape of the Gnarly  PT# 025203 some time in summer of 2021.  We know that a pipe built in July 2021 does not fit and any pipe built after that date will likely not fit.   They have used the same part number for this pipe without a revision number so there is no way to know when the change was made but since we did not hear about this issue until Dec 2021 probably anything built in early 2021 would fit.  We have no working relationship with FMF and they do not share there R&D information as to why and when the change was made.  We do have stock of this part number and hope we can sell thru them for people that have the original pipe shape.  After all our current stock is gone this sku will be discontinued.

On sale due to FMF pipe fit issue.   If you purchase this guard ensure you have an older manufactured FMF pipe!!!  we are not responsible for shipping cost to you or return if you have not looked at the fit issues with the FMF newer Gnarly pipe design change!!!

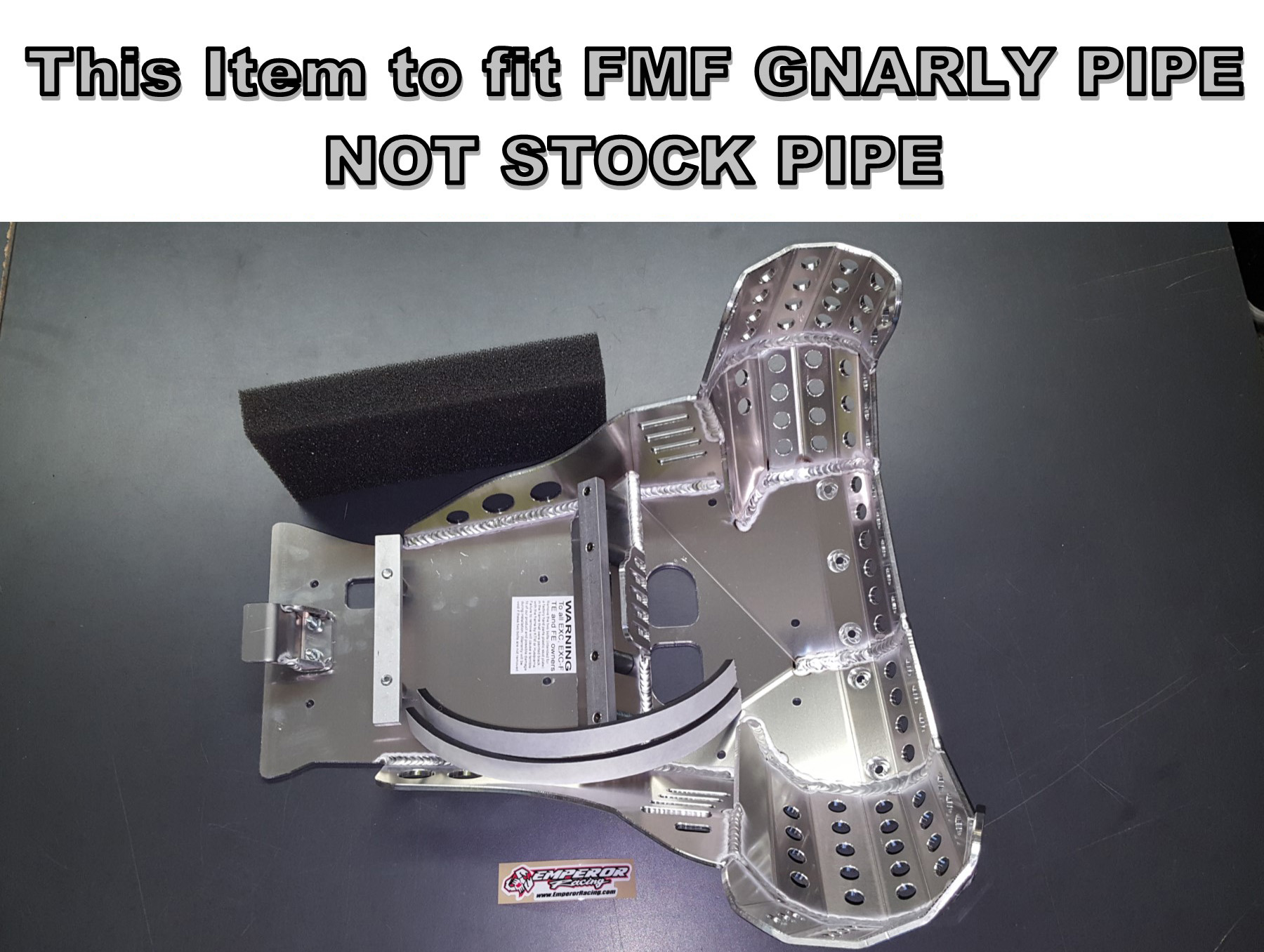

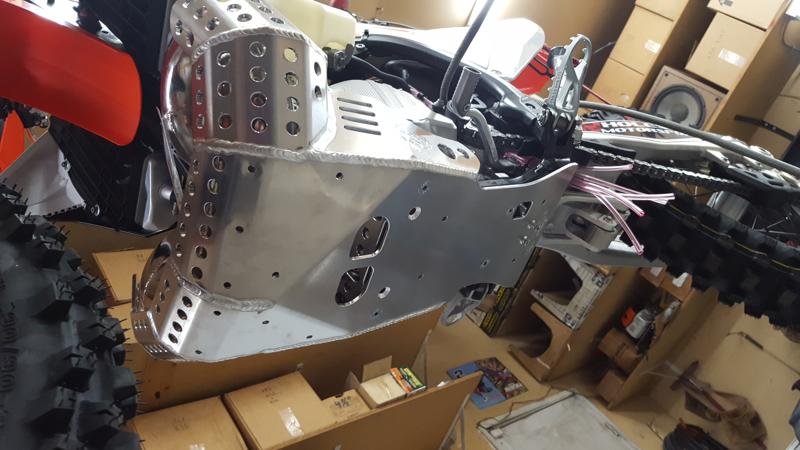

The Emperor Pipe Guard Skid Plate is the best skid plate available on the market today. With a 3/16” thick aluminum construction, hand Tig welded wings (full length both sides) with an Emperor logo carved into each side for the bling factor, aluminum mounting brackets and high-grade metric fasteners, you simply can’t go wrong. But now we have made it even better by offering a pipe guard version for all the 2 stroke fans out there. It still has all the standard extras like 1/4″ thick x 3/4″ wide foam tape to place between the frame and skid plate for a nice snug fit that will eliminate any possible vibrations, a block of open cell foam is also supplied to place between the skid plate and the engine to reduce the build up of material between the skid plate and engine case. Also has pre-drilled holes for Plastic Slip Liner (KTM-2256)  This is the perfect product for the hard core 2 stroke loving off-road rider.

Product Features:

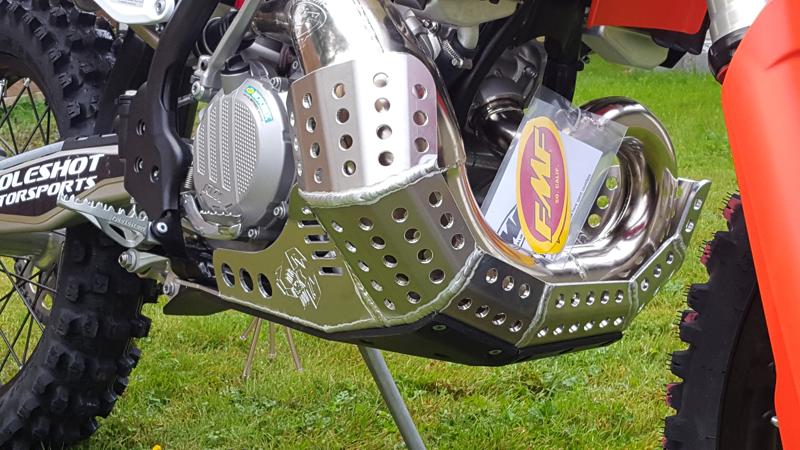

> MANUFACTURED OUT OF HIGH GRADE 3/16″ ALUMINUM MAKES THE EMPEROR HEAVY DUTY SKID PLATE ARGUABLY THE STRONGEST SKID PLATE AVAILABLE NOW WITH AN EXTENDED FRONT THAT PROTECTS THE 2 STROKE EXHAUST PIPE

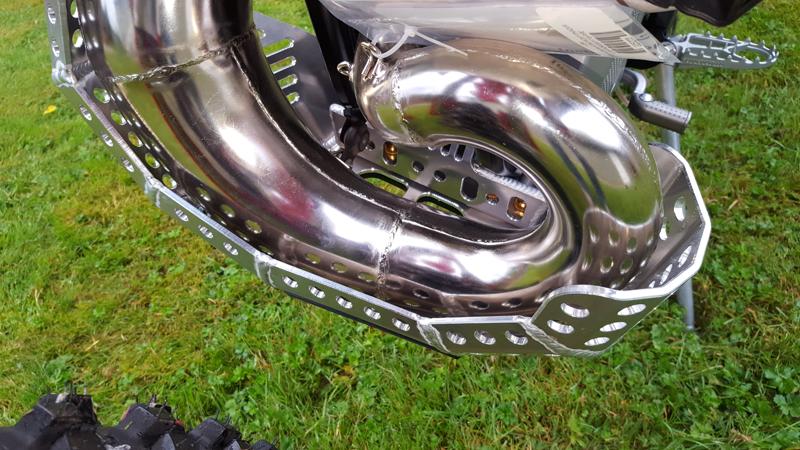

> EXHAUST GUARD DOES NOT TOUCH THE PIPE IN ANY WAY SO ALL IMPACT STRESSES ARE TRANSFERRED BACK TO THE FRAME NOT THE ENGINE CASE
> EXTRA MIDDLE MOUNTING BRACKET TO HELP SUPPORT THE EXHAUST GUARD
> BOTH SIDE AND BOTTOM PROTECTION AGAINST IMPACT
> 4 BOLT FRONT MOUNTING STOPS MOUNTING BRACKETS FROM BENDING WHEN SKID PLATE TAKES A HARD IMPACT (MOST MODELS)
> NO NEED TO REMOVE SKID PLATE TO CHANGE OIL
> SNUG FIT SPACERS MAKE THIS SKID PLATE QUICK AND EASY TO INSTALL
> FRONT MOUNTING BRACKET HAS SMALL VENTED MUD GUARD THAT STICKS UP BETWEEN THE FRAME RAILS (HELPS TO KEEP THE MUD OUT)
> FOAM TAPE TO PUT BETWEEN THE FRAME AND SKID PLATE
> OPEN CELL FOAM TO PUT BETWEEN THE SKID PLATE
> EMPEROR SCORPION ENGRAVED IN EACH WING FOR SOME BLING FACTOR
> PRE-DRILLED HOLES FOR PLASTIC SLIP LINER (KTM-2256) SOLD SEPARATELY
> WEIGHS 6LBS/2.7KGS WITHOUT SLIP LINER OR 7LBS/3.2KGS WITH SLIP LINER
> PROUDLY MADE IN CANADA

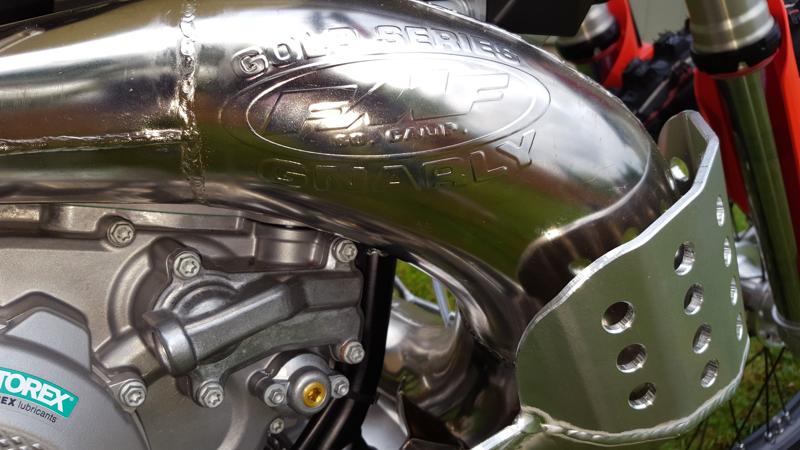

This product designed to be used with FMF Gnarly pipe 025203 only..   will not fit the stock pipe, will not fit FMF Fatty, Pro circuit or any other aftermarket pipe that we know of.

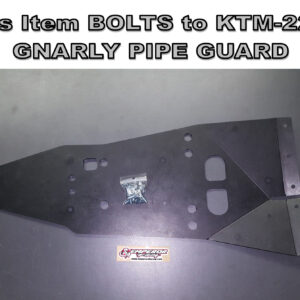

Plastic Slip Liner for this skid plate is KTM-2256

• Front Bracket for Pipe Guard Skid Plate KTM-2255 (Fits FMF Gnarly Pipe)
• Rear Bracket for Pipe Guard Skid Plate KTM-2255 (Fits FMF Gnarly Pipe)
• Front Cross Bar for Pipe Guard Skid Plate KTM-2255 (Fits FMF Gnarly Pipe)
• Middle Cross Bar for Pipe Guard Skid Plate KTM-2255 (Fits FMF Gnarly Pipe)
• Complete hardware kit, bolt kit and spacer kit for KTM-2255
